Double-drum vibratory roller · Wacker Neuson technology

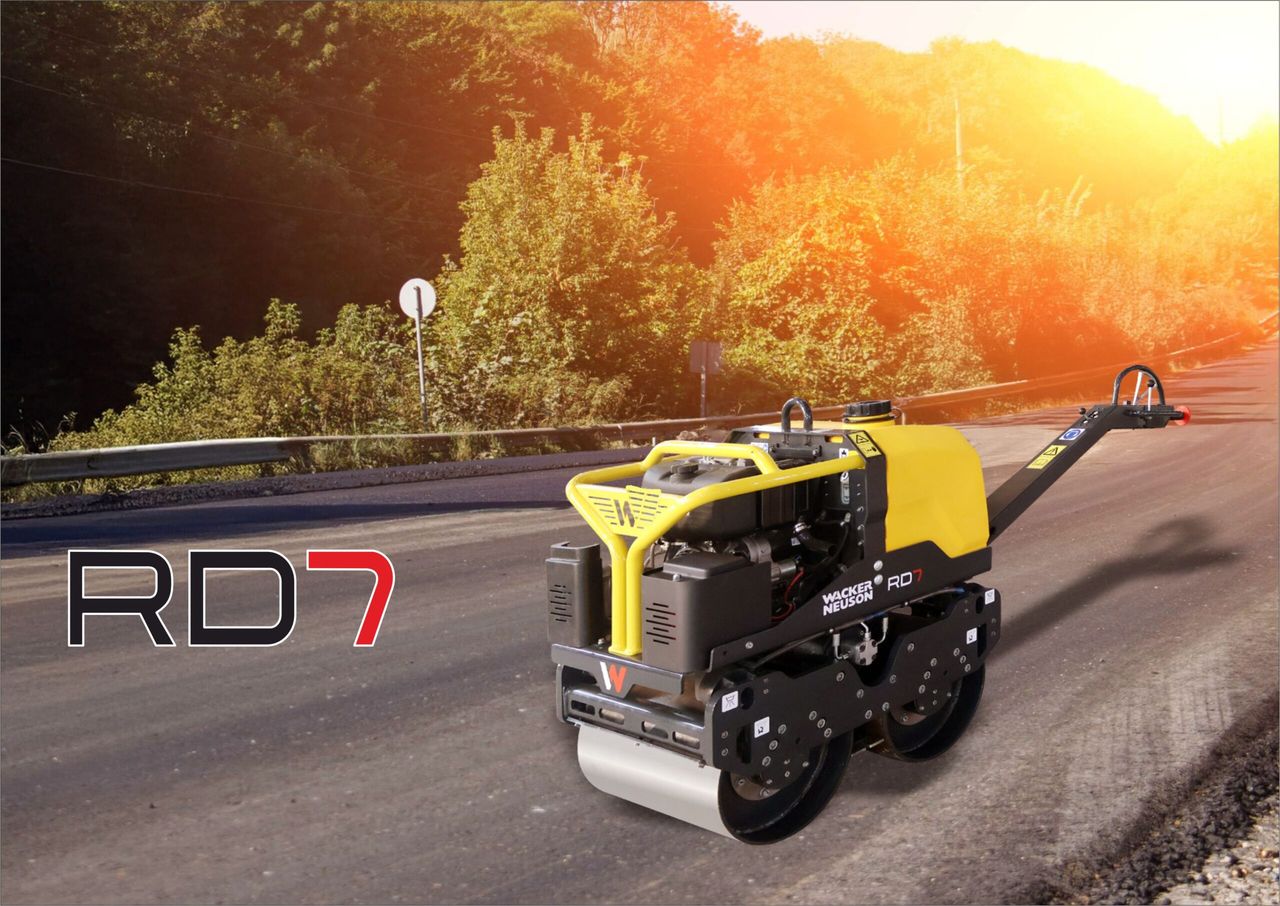

CMPL RD7Keh Walk-behind Roller
A hand-guided, fully hydrostatic double-drum roller for soil and asphalt. Narrow enough to work beside walls and kerbs, made by CMPL with Wacker Neuson engineering.
- Drum width
- 650 mm
- Centrifugal force (stage II)
- 20.4 kN
- Operating weight, water filled
- 784 kg
01Good for
Good for
- 01Compacting soil and sub-base in trenches
- 02Asphalt patching and footpaths
- 03Work close to walls and kerbs
- 04Small and confined urban sites
Key features
- 01Two vibration stages
- 02Hydrostatic drive on both drums
- 03Automatic hydraulic parking brake
- 04Water sprinkler tank, drum scrapers, hour meter and emergency reverse stop
02Technical specifications
Technical specifications
Operating data
- Operating weight, water filled / empty
- 784 kg / 724 kg
- L x W x H, working position
- 2494 x 720 x 1200 mm
- L x W x H, transport position
- 1460 x 720 x 1990 mm
- Drum width / diameter
- 650 mm / 400 mm
- Centrifugal force, stage I / II
- 13.7 kN / 20.4 kN
- Max vibration frequency
- 56 Hz
- Travel speed, forward / reverse
- 4 km/h / 2.5 km/h
- Gradeability
- 33%
- Curb clearance, left & right
- 225 mm
- Drive / exciter
- Hydrostatic, both drums / hydrostatic, centre mounted
Engine
- Make / model
- Kohler KD15-441 NE30
- Type
- Air-cooled, 4-stroke diesel, electric start
- Displacement
- 441 cm³
- Rated power
- 5.2 kW @ 2600 rpm
- Max power
- 6.7 kW @ 3000 rpm
Capacities
- Fuel tank
- 5 L
- Hydraulic oil
- 5 L
- Water tank
- 60 L
Specifications as published by Convenient Machines Pvt. Ltd. (CMPL).
