Backhoe loader · KOEL engine (domestic)

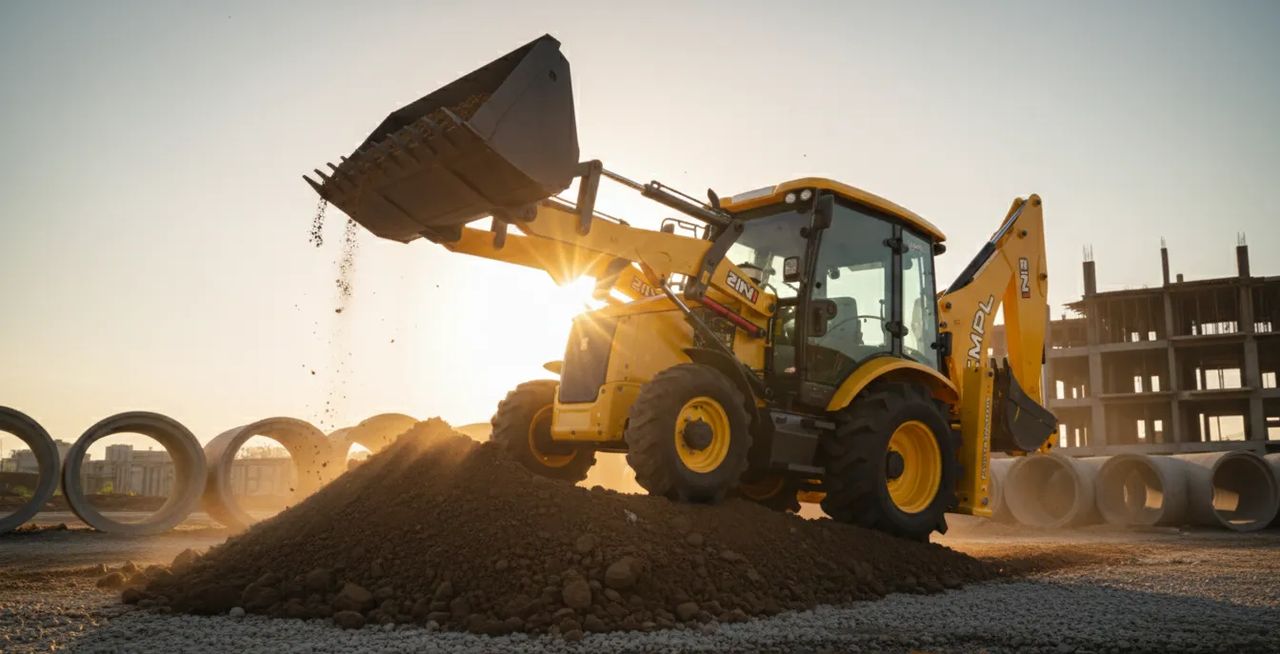

CMPL 2IN1 Backhoe Loader
A backhoe loader with a loader bucket at the front and a digging arm at the back, powered by a 74.5 HP Kirloskar engine with Carraro transmission and axles.
- Max dig depth
- 4.91 m
- Max working height
- 6.1 m
- KOEL engine
- 74.5 HP
01Good for
Good for
- 01Trenching for pipes, cables and drains
- 02Digging foundations and pits
- 03Loading soil, sand and debris
- 04Backfilling, levelling and site clearing
Key features
- 01Smooth Ride System (SRS) to calm loader bounce in travel
- 02Carraro TLB1 synchro-shuttle transmission and Carraro axles
- 03Parker hydraulic pump, 250 bar system
- 04HVAC / AC cabin available as an option
02Technical specifications
Technical specifications
Engine
- Model
- KOEL 4R1190TA HT, BS-V, turbocharged
- Cylinders / cooling
- 4 / water cooled
- Displacement
- 4.76 L
- Gross power
- 74.5 hp (54.8 kW) @ 2200 rpm
- Max torque
- 400 Nm @ 1200 rpm
Drivetrain
- Transmission
- Carraro TLB1 synchro-shuttle, 4-speed, torque converter
- Torque converter stall ratio
- 3.01
- 4WD
- Electrically selected, on the move
- Service brakes
- Hydraulic, dual line, oil-immersed multi-disc, rear axle
- Tyres 2WD, front / rear
- 9 x 16 - 16 PR / 16.9 x 28 - 12 PR
- Tyres 4WD, front / rear
- 12.5 x 18 - 12 PR / 16.9 x 28 - 12 PR
- Speed, gears 1–4 (km/h)
- 5.79 / 9.26 / 20.8 / 40.4
Hydraulics, steering & electrical
- Hydraulic system
- 250 bar, 118 LPM @ 2200 rpm
- Steering
- 175 bar, load-sensing axial piston pump
- Electrical
- 12 V, 180 Ah battery
- Shipping weight
- 8200 kg
Backhoe (excavator) performance
- Max dig depth
- 4.91 m
- Reach, ground level to slew centre
- 6.01 m
- Max working height
- 6.1 m
- Max load-over height
- 4.09 m
- Bucket tear-out force
- 6377 kgf
- Dipper tear-out force
- 3460 kgf
- Standard bucket capacity
- 0.24 m³
- Standard bucket width
- 0.72 m
Loader performance
- Dump height
- 3.01 m
- Load-over height
- 3.55 m
- Pin height
- 3.72 m
- Dump angle
- 45°
Dimensions (m, ±5%)
- Overall length
- 6.22
- Wheelbase
- 2.22
- Height to top of cab
- 2.84
- Overall height
- 3.86
- Width over bucket
- 2.38
- Minimum ground clearance
- 0.30
Service capacities
- Hydraulic system
- 100 L
- Fuel tank
- 130 L
- Engine coolant
- 20 L
- Engine oil
- 14 L
- Transmission
- 19.5 L
- Rear axle / front axle
- 17.5 L / 9.1 L
Options
- 01General-purpose shovel, 1.1 m³
- 02Excavator buckets: 0.12, 0.18, 0.27 and 0.30 m³
- 03Ditch cleaning bucket
- 04Taper ditch bucket
- 05Heavy-duty rear tyres 14 x 25
Specifications as published by Convenient Machines Pvt. Ltd. (CMPL).
Official spec sheet (PDF)CMPL product page- CMPL’s web page lists an 80 L fuel tank and 8.27 t operating weight; the spec sheet lists a 130 L fuel tank and 8200 kg shipping weight. We show the spec sheet.
