Backhoe loader · Perkins engine

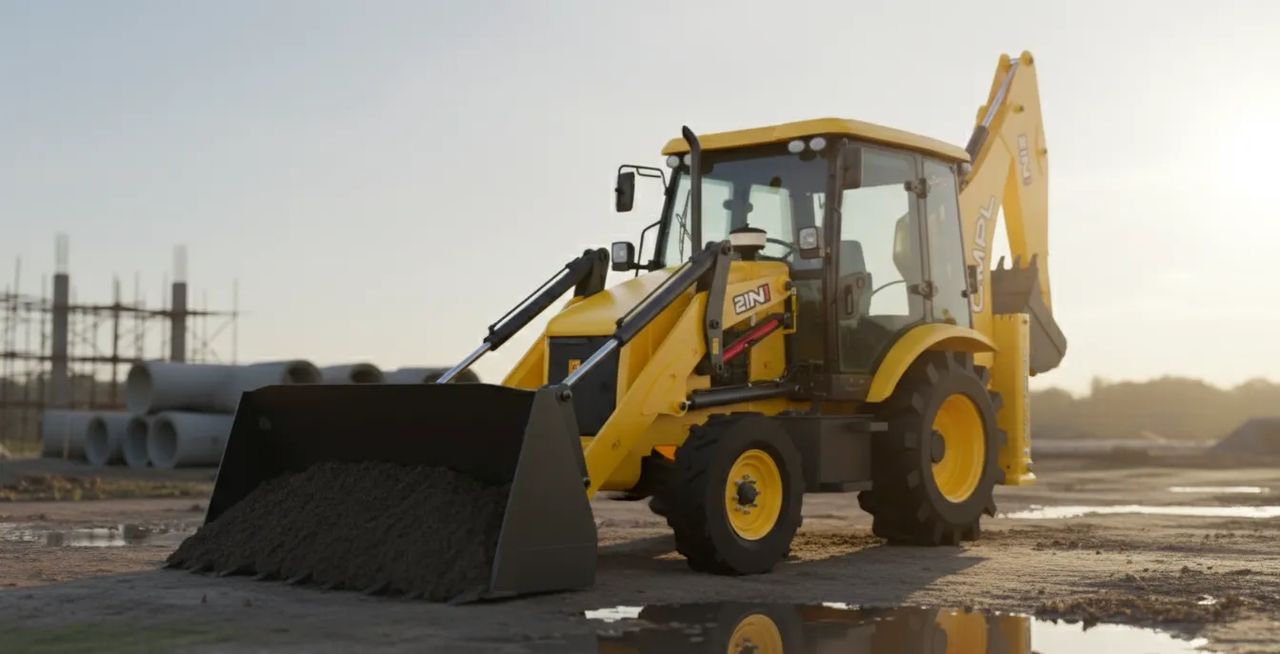

CMPL 2IN1 Backhoe Loader (International)
The Perkins-powered version of the 2IN1: 100 hp, higher hydraulic flow and a longer option list including a rock breaker and an extendable dipper.
- Max dig depth
- 4.91 m
- Perkins engine
- 100 hp
- Hydraulic flow
- 160 LPM
01Good for
Good for
- 01Trenching and foundation digging
- 02Breaking rock or concrete with the rock-breaker option
- 03Loading, backfilling and levelling
- 04Longer reach work with the extendable dipper option
Key features
- 01Perkins 1104D-44TA, turbocharged after-cooled
- 02Carraro TLB1 synchro-shuttle transmission
- 03HVAC cabin and Smooth Ride System
- 04Multipurpose bucket available
02Technical specifications
Technical specifications
Engine
- Model
- Perkins 1104D-44TA, turbocharged after-cooled
- Cylinders / cooling
- 4 / water cooled
- Displacement
- 4.4 L
- Gross power
- 100 hp (74.5 kW) @ 2200 rpm
- Max torque
- 410 Nm @ 1400 rpm
Drivetrain
- Transmission
- Carraro TLB1 synchro-shuttle, 4-speed, torque converter
- Torque converter stall ratio
- 2.64:1
- Tyres 4WD, front / rear
- 12.5 x 18 - 12 PR / 16.9 x 28 - 12 PR
- Speed, gears 1–4 (km/h)
- 5.79 / 9.26 / 20.73 / 40.4
Hydraulics, steering & electrical
- Hydraulic system
- 250 bar, 160 LPM @ 2200 rpm
- Steering
- 175 bar, load-sensing axial piston pump
- Electrical
- 12 V, 180 Ah battery
- Shipping weight
- 8400 kg
Backhoe (excavator) performance
- Max dig depth
- 4.91 m
- Reach, ground level to slew centre
- 6.01 m
- Max working height
- 6.1 m
- Max load-over height
- 4.09 m
- Bucket tear-out force
- 6377 kgf
- Dipper tear-out force
- 3460 kgf
- Standard bucket capacity
- 0.24 m³
- Standard bucket width
- 0.72 m
Loader performance
- Dump height
- 3.01 m
- Load-over height
- 3.55 m
- Pin height
- 3.72 m
- Dump angle
- 45°
Dimensions (m, ±5%)
- Overall length
- 6.22
- Wheelbase
- 2.22
- Height to top of cab
- 2.84
- Overall height
- 3.86
- Width over bucket
- 2.38
- Minimum ground clearance
- 0.30
Service capacities
- Hydraulic system
- 100 L
- Fuel tank
- 130 L
- Engine coolant
- 20 L
- Engine oil
- 14 L
- Transmission
- 19.5 L
- Rear axle / front axle
- 17.5 L / 9.1 L
Options
- 01Multipurpose shovel, 1 m³
- 02Excavator buckets: 0.12, 0.18, 0.27 and 0.30 m³
- 03Ditch cleaning bucket and taper ditch bucket
- 04Rock breaker
- 05Extendable dipper
- 06Smooth Ride System (SRS)
- 07Heavy-duty rear tyres 14 x 25
Specifications as published by Convenient Machines Pvt. Ltd. (CMPL).
