Rough-terrain forklift · multi-purpose material handler

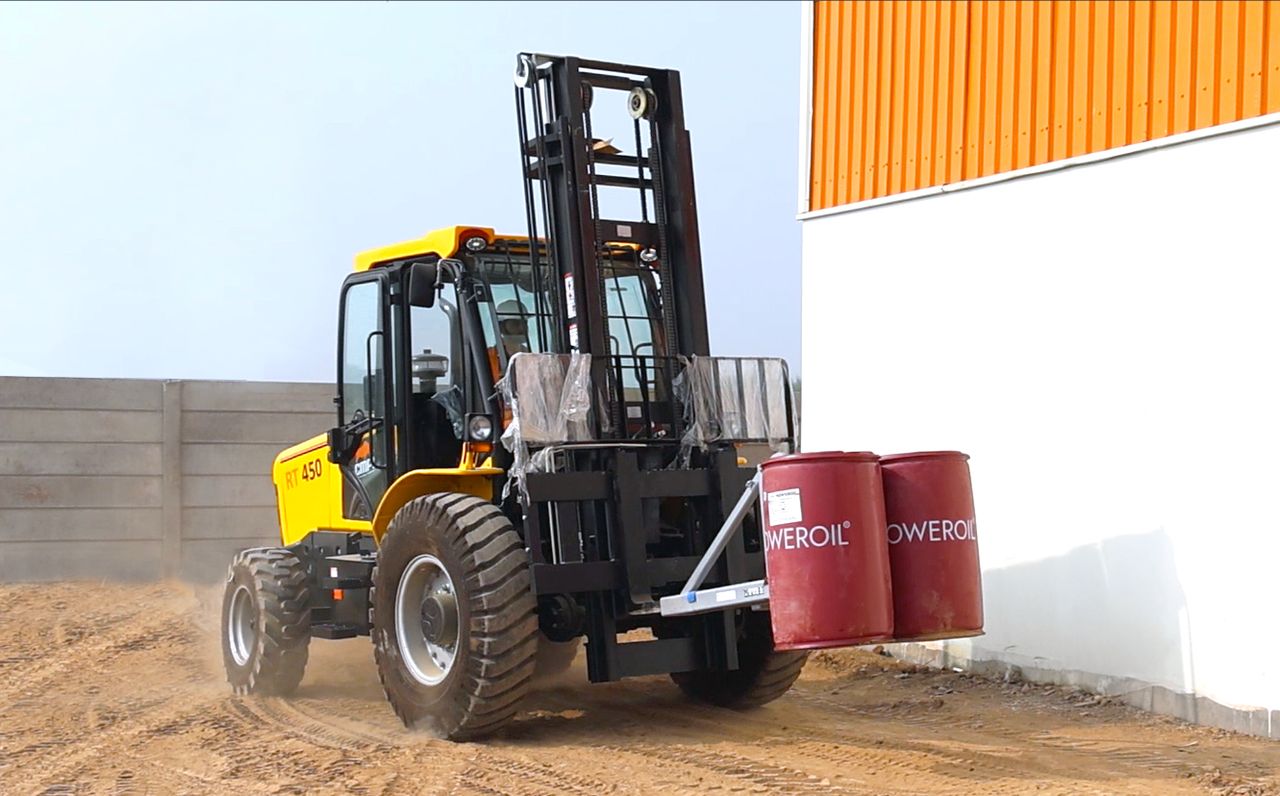

CMPL All Rounder RT450
A 4-tonne rough-terrain forklift built to work on uneven yards and sites. With attachments it can also lift with a hook or jib, load with a bucket, handle pipes and blocks, drill with an auger or pull with a winch.
- Max capacity
- 4 t
- Max lift height
- 4.5 m
- KOEL BS-V engine
- 74.5 HP
01Good for
Good for
- 01Moving pallets, bags and material across rough ground
- 02Lifting and placing loads with the crane hook or jib attachments
- 03Pipe laying with the pipe-handler attachments
- 04Loading loose material with the bucket attachment
Key features
- 01Duplex mast with side shift and 15° tilt either way
- 02Rear-wheel steering for tight turns
- 03ROPS and FOPS operator cabin
- 04One operator runs every attachment
02Technical specifications
Technical specifications
Machine
- Max capacity
- 4 t
- Max lift height
- 4.5 m
Engine
- Model
- KOEL BS-V
- Type
- Diesel, 4-stroke, naturally aspirated, 4 cylinders
- Fuel injection
- Direct high-pressure common rail
- Cooling
- Water cooled
- Power
- 74.5 HP (54.8 kW) @ 2200 rpm
- Max torque
- 300 Nm @ 1320 rpm
- Fuel capacity
- 90 L
Drivetrain
- Transmission
- Carraro, 4F-4R power shuttle, synchromesh, manual shift
- Front axle
- Carraro heavy-duty rigid axle
- Steering
- Rear-wheel steer
- Brakes
- Oil-immersed disc, front
- Tyres, front / rear
- 14 x 25 / 12.5/80 x 18
- Max travel speed
- 35 km/h without load, 15 km/h with load
Hydraulics & electrical
- Pump
- Parker gear pump
- Flow
- 57 LPM @ 2200 rpm
- Pressure
- 220 bar
- Hydraulic system capacity
- 100 L
- Electrical
- 12 V heavy-duty, single 180 Ah battery
Dimensions (mm, ±5%)
- Height to top of mast, mast closed
- 3380
- Operating height, mast fully raised
- 5920
- Max fork height, forks horizontal
- 4500
- Height to top of cab roof
- 2875
- Total length, counterweight to fork tip
- 5500
- Wheelbase
- 2290
- Ground clearance
- 305
- Overall width
- 2315
- Mast tilt, back / forward
- 15° / 15°
- Mast side shift, each side
- 75
- Turning radius, with / without brake
- 4210 / 4550
Specifications as published by Convenient Machines Pvt. Ltd. (CMPL).
Official spec sheet (PDF)CMPL product page03Attachments
Attachments
Hydraulic jib crane 32XC
- Max lift capacity
- 2 t
- Max operating range
- 12.5 m
- Above ground level
- 9.8 m
- Below ground level
- 2.75 m
Man basket with 32XC
- Max lift capacity
- 240 kg
- Max operating range
- 16.4 m
- Above ground level
- 12.0 m
- Below ground level
- 4.4 m
Mechanical jib crane
- Max load capacity
- 4500 kg
- Max horizontal reach
- 3575 mm
- Max operating height
- 6999 mm
- Max opening angle
- 40°
Crane hook
- Load capacity
- 4500 kg
- Max lifting height
- 4500 mm
Loader bucket
- Shovel capacity
- 1.1 m³
- Shovel width
- 2230 mm
- Dump height
- 3856 mm
- Dump angle
- 54°
Fork extension
- Fork length
- 2030 mm
- Max lifting height
- 4500 mm
Universal pipe handler
- Load capacity
- 2 t
- Max lifting height
- 4070 mm
- Below ground
- −430 mm
- RCC / steel pipe diameter
- 150–600 mm
Flat bed pipe handler
- Load capacity
- 3.5 t
- Max lifting height
- 4500 mm
- RCC pipe diameter
- 700 mm
- RCC pipe length (max)
- 8.6 ft
Block handler
- Load capacity
- 2700 kg
- Arms opening width
- 1860 mm
- Arms closing width
- 530 mm
- Arm length
- 1000 mm
Twin drum handler
- Load capacity
- 600 kg
Auger
- Tool bit diameter
- 12 in
- Working depth
- 3.8 m
Hydraulic winch
- Wire rope diameter
- 12 mm
- Max pulling force
- 1200 kg
Backhoe
- Digging depth
- 2550 mm
- Side shift
- 700 mm each side
- Swing
- 90°
